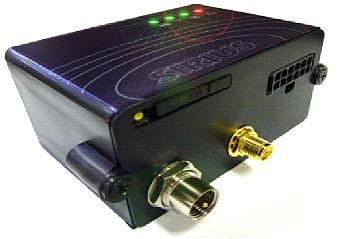

Sirius - car security

Device for GSM control of position vehicle

  • position vehicle

  • state  of  alarm inputs (alarm+, alarm-, bypass)

  • block of engine

  • voltage of accumulator in vehicle and backup accumulator

  • activation, deactivation device thru GSM or key (RFID, DALLAS)


Features

  • Car position (GPS locating) with memory of last position (GPS signal failure)

  • During driving automatical position record every minute into memory includes date and time ( time is adjustable) –In memory is saved last 4000 positions (cca 66 hours of driving ( 1 record per minute))

  • Detection of position whenever you want by SMS

  • During Alarm is generating a call up to 8 phone numbers

  • During Alarm or power supply disconnection is sending SMS includes status and position 3 Alarm inputs (alarm): activated by connection to +, activated by connection to ground, activated by current floating („bypass“)

  • Output for remote blocking of engine by SMS

  • Remote blocking of device by SMS

  • Activation/deactivation by Dallas chip, RFID etc..

  • Sound signalling

  • Remote setting of all parametres by SMS from authorised numbers only

  • Remote measurement of Back up Battery voltage

Technicäl specification

  • Power supply range: 8 - 28V DC

  • Stand by consumption: cca 10 mA (Back up ACU charged)

  • Max current consumption: 1,5 A (peak – call + charging Back up ACU)

  • Input ALARM-: alarm activation by short circuit to ground for time 0.1-9.9sec (default 0.3sec)

  • Input ALARM+: alarm activation by connection to + of power supply for time 0.1-9.9sec (default 0.3sec)

  • Input BYPASS: alarm activation by current floating > cca 100mA for time 0.1-9.9sec (default 3sec)

  • Output beeper – output for connection of bell, beeper etc..: max. current cca 500mA

  • Blocking output – output for relay connection to disconnect ignition: max. current cca 1000mA GSM: EGSM 900 (class 4 – 2 W)

  • GSM 1800 (class 1 – 1 W) Antenna connector FME

  • SIM card: 3/1,8 V

  • GPS: Leadtek (SIRFIII) Antenna connector SMA

  • Back up ACU: 4 V/2.6 Ah

  • Operation time without power supply : cca 24 to 100 hours up unit load

  • Protection against power supply polarity change

  • Automatical fuse and overvoltage protection

  • Operational temperature –20 to +50 °C

  • Dimension: 80 x 50 x 35 mm

  • SMS „position“ includes: latitude and longitude,date , GM time from detected position, movement speed

Downloads:
8.10.2009
PDF
140 KB
7.10.2009PDF47 KB
