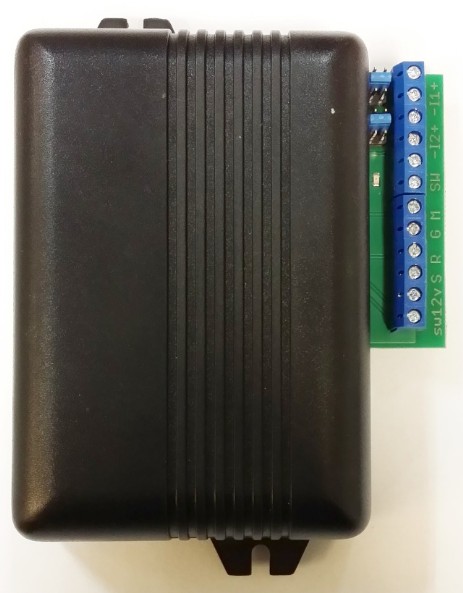

The ReMicL unit is part of GSM Lift Watch Voice and GSM Lift Watch Voice 3G.
Allows multiple wires to be connected in parallel, eg for communication under the cab and above the elevator car.
ReMicL units can not be combined with ReMic Box units.
ReMicL is only for direct LED connection
Basic features of ReMicL:
  • Connection to the system is identical to that of ReMic
  • Can be combined with ReMicL, ReMicA, ReMicB (together up to 3pcs of ReMic X)

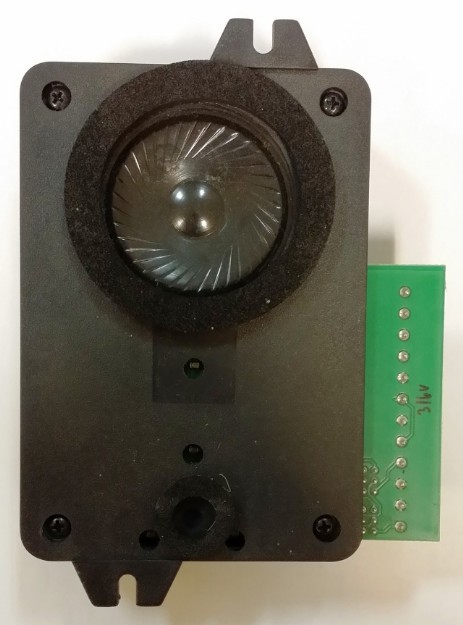

  • Built-in microphone and speaker
  • Built-in LED indication
  • Operation and status indication EN 81-28
  • The display output is for LED only (the LED output can not be connected to the LCD panel with logic inputs)
  • Button activation input
  • Input for voltage activation
  • When using the PREPOJ module in the engine room, the possibility of communication between the engine room and all ReMicX

ReMicL units can be connected in parallel and can not be combined with ReMic Box.


Last change: 29.1.2020
