Technical parametres:

• Dimension 185 mm x 99 mm x 40 mm


• Operating position various


• Operating condition temperature: -20 to + 50°C


• humidity: 10% ÷ 80% při 30° C


• Power supply 12 (9-24) V AC/DC, 200mA (optionaly integrated ACU 2000mAh for cca 48h of operation)


• Buttons 1 or 2 up casing (for each button max 7 numbers progressively dialled)


• Relay 2x switching contact


• Max. voltage 48V when I<1A


• Max. Current 2A when U<30V


• Activation time by code 1 to 99 sec


• Activation time by SMS 1 to 99 min


• Input: 0/5V


GSM:

• networks 850/900/1800/1900 MHz


• SIM 3V, 1.8V

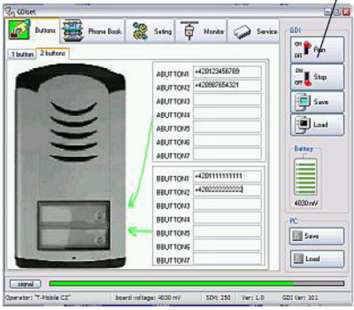

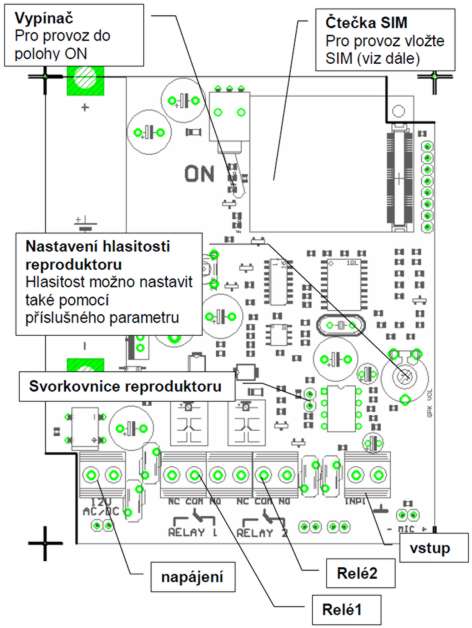

Control emelents and connection

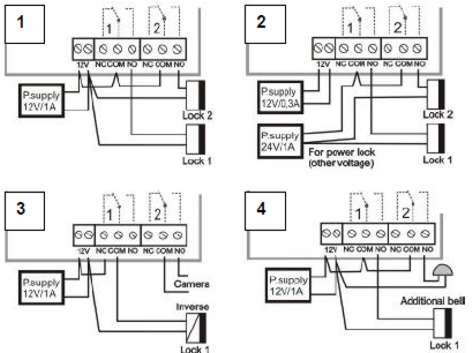

Examples of relay connection
1. Basic connection - 2 electrical locks and possibility control 2 doors ( gates)
2. 2x PSU – possibility to use 2x independent PSU. One for GDI and second for electrical locks. The electrical lock 2 is connected inversaly (fire emergency doors).
3. External camera or lighting activation.
4. Electrical lock and additional bell combination.
