RestrictBox
RestrictBox time limitation of call. This product will save costs in the telephone connection. Based on the dialled number (direction - according to the code distinguishes the type of call credit) monitors the number of free minutes, or minutes with a low rate (credit), the forfeiture of the time connection to the connection is disconnected and a new conversation in this direction cannot be established. Other directions can be used in the forfeiture of credit.
RestrictBox includes a RTC (real time) and will automatically charge the credit daily, weekly, monthly or annually.
Parameter settings can be made using the DTMF phone connected via USB cable or a PC.
Features
powered by12V-24V / 100mA, for more RestrictBoxes can use a common power supply
20 directions call (prefix resolution up to 8 characters)
3 fixed length of telephone numbers
credit for each direction (for a fixed length number) 2-99999 min
in forfeiture of credit during the call can be prolong every minute of dialling the character set
be involved in the PBX, then set the filter access to the state line to determine the correct direction
adjustable interval charging credit
LED status, credit, time and activities of line
RTC - real time clock backup battery 3V Lithium
at failure or power supply is allowed to make phone calls (passive mode)
the ability to set blocking incoming calls
a pushbutton for hardware reset
adjustable time between the ringing - for the evaluation of incoming / outgoing call
adjustable time after the dial before the connect - start of the call for evaluation and determination of a finite number of digits dialled
talk time is calculated with an accuracy of 1 sec
settings can be made DTMF dialling from a connected phone
settings can be done using a USB cable and PC. SetBox program for Windows 98SE - Windows 7 is freeware

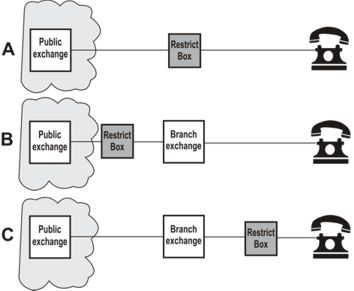

RestrictBox connects between the telephone line and the state line (A) or a private branch exchange and a state line (B) or between a telephone and a private branch exchange (C).
For proper function it is to be powered RestrictBox 12V-24V DC, consumption is up to 100mA and can be powered from a common source more RestrictBoxes.
Phone line (phone line or office PABX) is connected to the left terminal and RJ11 phone (input PABX) is connected to RJ11 connector on the right.
LED displays the current status Restrict Box and it is possible to see at a glance if everything is okay. LED functions are explained below.
After opening the cover (screw in the middle of stickers) is available on the bottom right button to enable the implementation of corporate settings, including passwords for access to programming. This will be done so that you press the button, then connect the power and hold the button then the green and yellow LEDs will start flashing, then release the button.

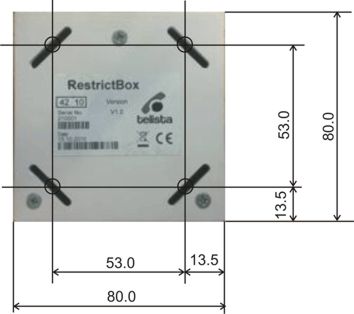

Mechanical dimensions and mounting
