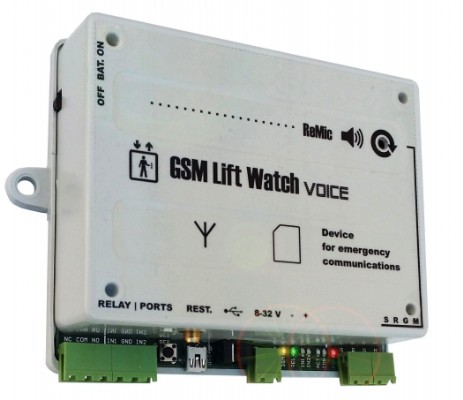

GSM LiftWatch Voice


The GSM lift watch is designed for emergency call from lift cabin to first aid ( service department, security, etc..). The unit is developed up directive EN 81-28 / EN 81-70.

It is the successor to GSM LiftWatch, which additionally provides:
  • Voice messages not only for activation / establishing a connection, but also for next 12 statuses, which may occur during operation.
  • built-in backup Li-Ion battery
  • remote controlled relay
  • and much more (see. Properties folder).

You will certainly appreciate easy installation and setup. No worries with a landline, clearly settings with a single SMS message.

Communicator for 1 cabine
ReMic not possible parallel connection

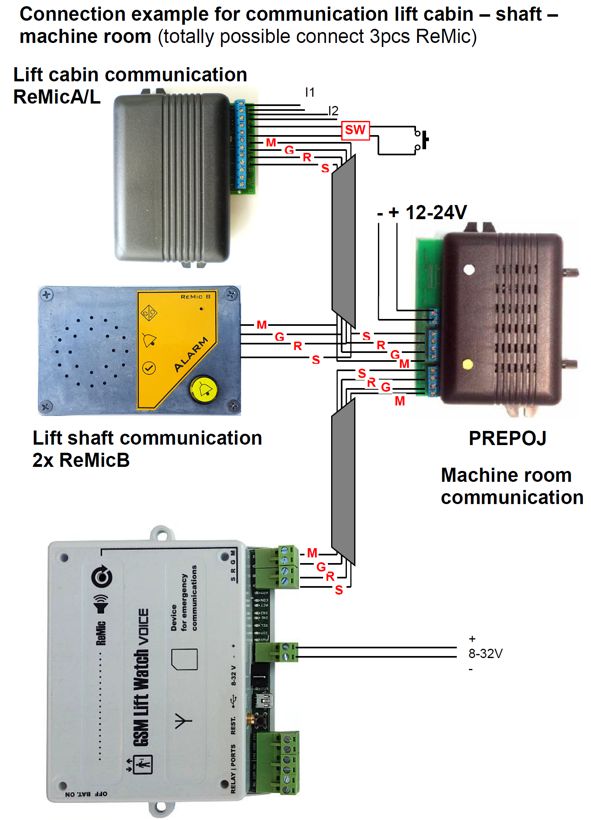

ReMicL for parallel connection (in/above/below cabine) - LED on box / external
ReMicA for parallel connection (in/above/below cabine) - LED output is possible use for bulb or LCD panel too
ReMicB for parallel connection (in/above/below cabine) - special metal version into the shaft

Features


Dimensions

  • Basic unit                            131 x 111 x 38,5    mm
  • Module ReMic                    110 x    78 x  52 mm (bez úchytů)


Power supply

  • Power supply                      from 8 to  30V dc, 50 - 500mA (according to traffic)
  • Embedded battery             Li-Ion 2000 mAh - approx 12h operation   in standby mode


Inputs/outputs

  • Inputs                                   2x – 1x blocking calls,   1x universal
  • Output                                  1x changeover contact   relay 24V/100 mA


Further   parameters

  • 14 programmable voice messages, each max. 8 sec.
  • Programmable contents of status SMSs
  • 7 programmable phone numbers for sequential   dialing emergency call
  • 7 programmable phone numbers for sequential   dialing service call
  • Working without PIN / with PIN code -   automatically generate a random PIN for SIM card
  • Evidence of service interventions on the elevator   with the date of the last intervention

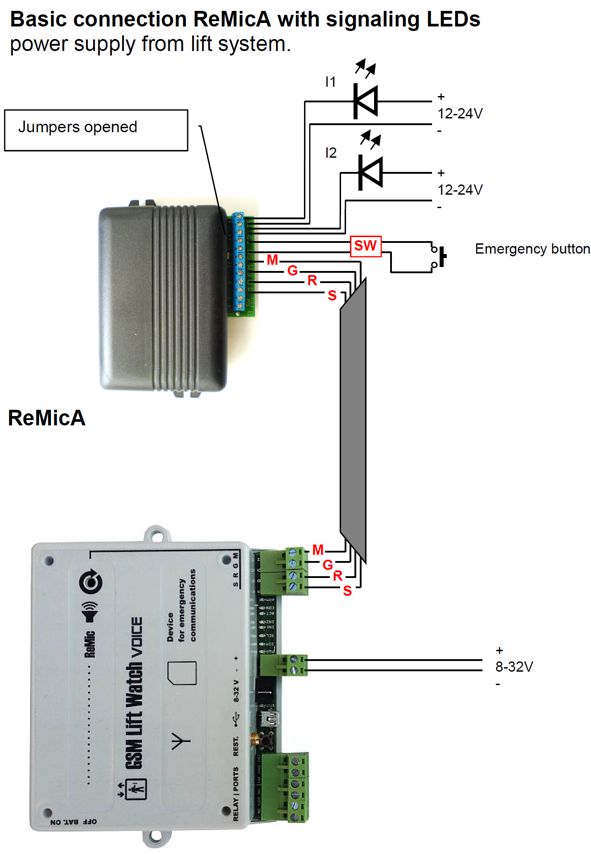

Example of connection

.

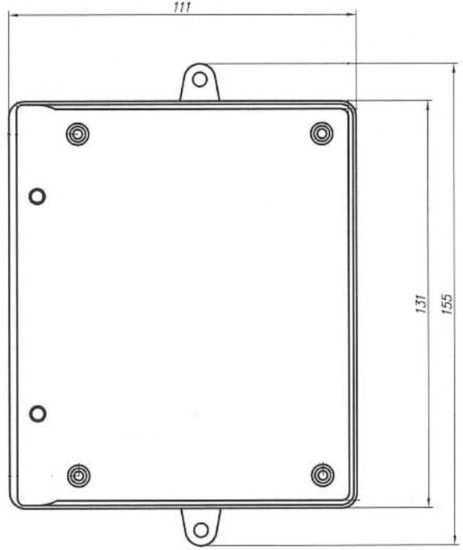

Dimension
Downloads:
12.1.2018PDF2253 KB
23.3.2017ZIP439 KB
23.1.2015
PDF
1408 KB
-Link-
Last change: 12.1.2018
